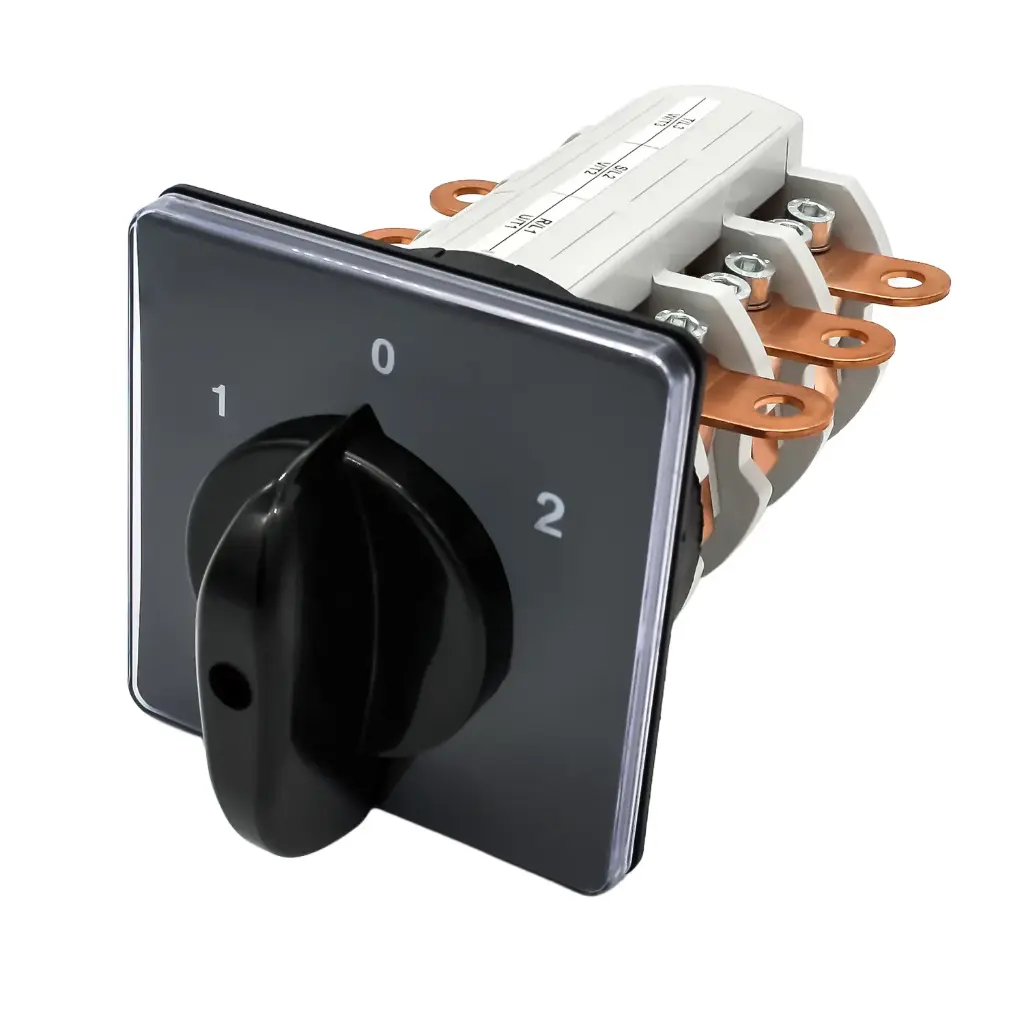

ASI CA2000007PL4 | 200A, 600V Class | 3 Poles | 15kA SCCR | Rotary Changeover Switch | Panel Mount | Manual Power Transfer | UL/CSA Listed

The ASI CA2000007PL4 is a 200 amp, 600V class, three pole rotary changeover switch designed for manual power transfer applications in industrial and commercial electrical systems. This panel mount changeover switch is UL and CSA listed and features a 15kA SCCR when protected with appropriate fusing. Built with positive opening double break silver alloy contacts and a robust rotary cam mechanism, the CA2000007PL4 provides reliable and clearly defined switching between two independent power sources such as utility and generator. The switch includes a door-mounted operating handle and plate assembly, allowing safe and convenient operation from the panel exterior while maintaining dependable internal switching performance.

KEY FEATURES / BENEFITS
• 200 amp thermal current rating for high current power transfer applications
• 600V class rating suitable for industrial power distribution systems
• Three pole rotary changeover design for three phase applications
• UL and CSA listed to UL60947-4-1A and CAN/CSA C22.2 No. 60947-4-1-07
• 15kA short circuit current rating with proper upstream protection
• Positive opening double break silver alloy contacts for reliable operation
• Panel door mount design with included handle for safe external operation
• Robust cam switch construction supports long service life

APPLICATIONS
• Generator to utility power transfer systems
• Industrial and commercial electrical panels
• Manual power source changeover applications
• Control and load switching systems
• OEM machinery and equipment
• Electrical enclosures and control cabinets

WHY ASI
• Products sourced from proven European OEM manufacturers
• Designed for demanding industrial power switching applications
• Emphasis on mechanical reliability and long service life
• Clean integration into standard electrical panel designs
• Backed by decades of electrical industry experience
